Klearvue School Bus | S-Series School Bus

All Ricon school bus products are for "DOT PUBLIC USE" vehicles and are compliant with all regulations.

Klearvue(K series)
The KlearVue wheelchair lift offers a unique folding platform, giving the kids and the driver a clearview of the outside.

The KlearVue™ is the most unique wheelchair lift on the market today. Based on Ricon’s proven, time-tested S-Series™ technology, the KlearVue™ provides an unobstructed view from within your school bus. Outside, the KlearVue™ is virtually unseen because of the unique folding platform design. School Bus drivers appreciate the added safety benefit of minimized “blind spots”, and passengers enjoy the unobstructed view that the KlearVue™ provides.

Advantages:
Complies with all applicable and ADA specifications

Unobstructed view from within the vehicle

Added safety benefit of minimized blind spots

Unique folding platform accommodates longer platform without requiring a raised roof or doors

Automatic inboard/outboard rollstops

Quiet, smooth operation

Stable and compact when stowed

Permanent, no-lube bearings at all major pivot points

Built-in manual backup system

Easy to operate and maintain

Limited 5-year warranty

Specs
Rated Load capacity800 lbs. (363 kg)
Maximum Usable Platform Length54 in. (1372 mm)
Maximum Usable Platform Width33 in. (838 mm)
Maximum Floor to Ground Travel48 in. (1219 mm)


For complete list of specifications, please refer to the product brochure

Back to top

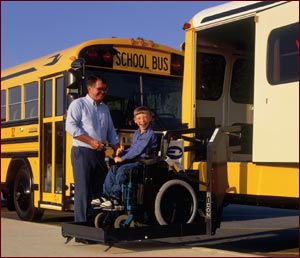

S-Series<sup>TM</sup> School Bus
The S-Series<sup>TM</sup> wheelchair lift offers technology that set the industry standard, providing safety and relability where you want it most: with your kids.

Often imitated but never duplicated, the S-Series™ wheelchair lift from Ricon sets the standard for safe, reliable accessibility solutions. These affordably priced, lighter weight lifts include a 5-year limited warranty, our patented interlocked occupant restraint belt, and our patented Sto-Loc™ design which prevents lift drift and assures a quieter ride.

S-Series Advantages:
Complies with all applicable and ADA specifications

Standee handrails

Occupant Restraint Belt

Spring loaded mechanical outboard rollstop

Automatic inboard rollstop

Quiet Sto-Loc™ technology

Stainless steel fittings

Lubrication-free bearings

5-Year Limited Warranty

Tighter steel mesh platform

Easy to operate

Easy to maintain

Lightweight, compact design

Specs
Rated Load capacity800 lbs. (364 kg)
Maximum Usable Platform Length54 in. (1371 mm)
Maximum Usable Platform Width34 in. (863 mm)
Maximum Floor to Ground Travel51 in. (1295 mm)

For complete list of specifications, please refer to the product brochure
